Combination Bar Chairs

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads


    Combination Bar Chairs are used to set the reinforcing bar and mesh to the correct position within the concrete cover. Ideal for use in applications including polystyrene pod slabs, slab-on-ground and swimming pools. The Danley™ range of Plastic Combination Bar Chairs are available in a range of standard sizes: 25mm & 40mm, 50mm & 65mm, 75mm & 90mm, 85mm & 100mm cover.


    The easy to use clip-on mechanism of the BC5065C ensures correct mesh placement is maintained when the crew is either walking on the mesh, or when the mesh is being repositioned or moved.


    Danley Combination Bar Chairs comply with the requirements of AS/NZS 2425:2015.



    Features:

    • Australian Made. The Reid Contruction Systems® manufacturing facility at Chirnside Park (Victoria) is ISO 9001 certified.
    • Strong and stable construction
    • Complies with the requirements of AS/NZS 2425:2015.




    File Type File Description
    Danley Product Catalogue ANZ Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.
    Danley Plastic Chairs & Spacers Product Catalogue ANZ Product CataloguesDanley Plastic Chairs & Spacers Product Catalogue
    Danley Combination Bar Chairs Statement of Compliance Product BulletinsDanley_Combination Bar Chairs_Statement of Compliance
    File Type File Description

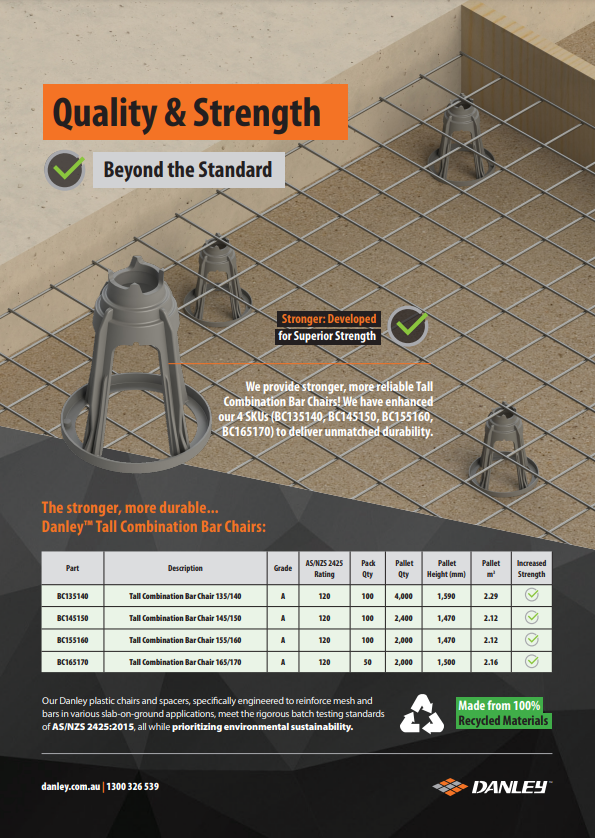

    Danley Tall Combination Bar Chairs_A4 Flyer Brochures & FlyersDanley Tall Combination Bar Chairs_A4 Flyer

    Combination Bar Chair

    Combination Bar Chair:

    Part #DescriptionAS/NZS
    2425 Load Rating (kg)
    Pack qty
    (Each)
    Pallet qty
    (pack)
    Pallet qty
    (Each)
    Pallet HeightPallet
    Cubic metre
    A (mm)B (mm)C (mm)D
    (mm)
    Max bar size
    BC2540Combination Bar Chair 25/40mm120100505,0001,0001.44254085up to 20mm
    BC5065CCombination Bar Chair 50/65mm Clip On120100606,0001,3001.875065100up to 20mm
    BC7590Combination Bar Chair 75/90mm120100404,0001,1001.587590110up to 20mm
    BC85100Combination Bar Chair 85/100mm120100404,0001,5002.1685100110up to 20mm

    Danley™ Slab-on-Ground Industrial, Residential, and Pavement Systems have a trusted history spanning over 25 years.
