Hyper ArmourMate™

Hyper ArmourMate™ is the premium armour edging solution and is suited to applications where the wear surface must withstand materials handling equipment (MHE) traffic with small hard-wheels carrying high-loads on a daily basis, in particular semi-automated and automated materials handling environments. The Hyper ArmourMate™ system is manufactured from high-quality, Cold drawn steel rails to provide superior impact protection. Hyper ArmourMate™ is supplied in standard 3 metre lengths.

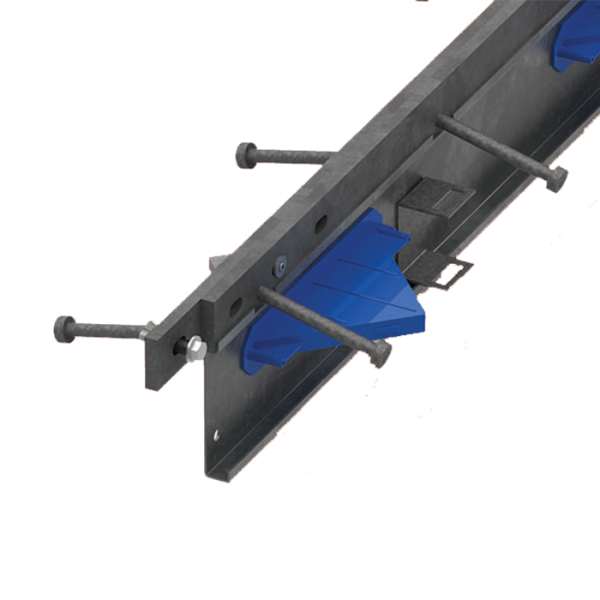

Use the Hyper ArmourMate™ system when the floor requires the best protection performance over the longest possible lifecycle. Hyper ArmourMate™ systems are designed to provide the total joint system solution by incorporating 3 systems in the one solution:

• The Hyper ArmourMate™ steel rails provide armour edging.
• The Diamond™ Dowel as the load transfer system.
• The galvanised separation plate as the sacrificial formwork which replaces traditional form board.

Hyper ArmourMate™ is available in standard sizes or made to customer specification.

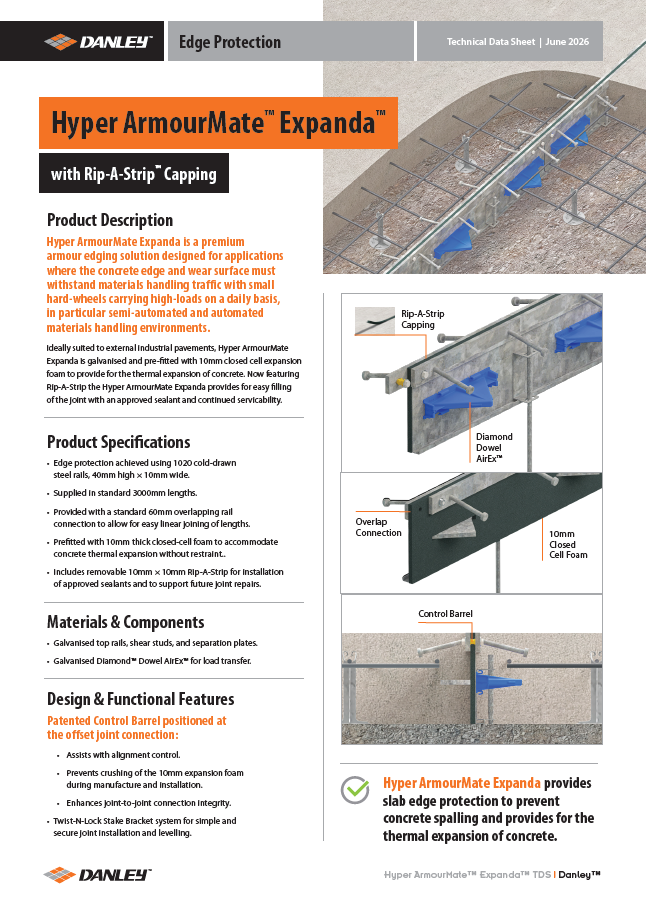

Hyper ArmourMate™ Expanda™ is supplied pre-fitted with 10mm Expansion Foam which provides for the thermal expansion of concrete. Hyper ArmourMate™ Expanda™ is available in standard sizes and is available on a made-to-order basis.

Hyper Top Rail Systems are available on a made-to-order basis in:

• Black
• Galvanised
• Stainless Steel

Conditions apply. For more information, contact the Danley™ Customer Service Team.

Features:

• Hyper ArmourMate™ is supplied in standard 3 metre lengths.
• Rails manufactured from high-quality, precision cold drawn steel.
• Solid flat bar rail 40mm x 10mm.
• Flatness Tolerance = ±0.5 mm/600mm  (±1.0 mm per 3m length).
• Patented Diamond™ Dowel.
• Patented Twist-n-Turn stake bracket system.
• Patented Nailing Bracket for top rail installations on timber formwork available.
• All Dowel systems are Grade 300.
• Galvanised formwork plate on all systems.

Advantages:

• Reduces labour associated with processing timber formboards.
• Reduces risk by eliminating hot-work on site.
• Provides deflection and load transfer control.
