Hyper ArmourMate™ Expanda™ with Rip-A-Strip™ Capping

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads

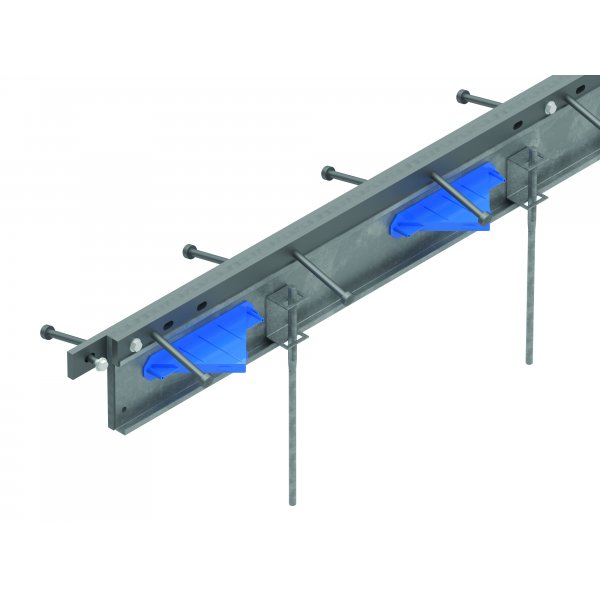

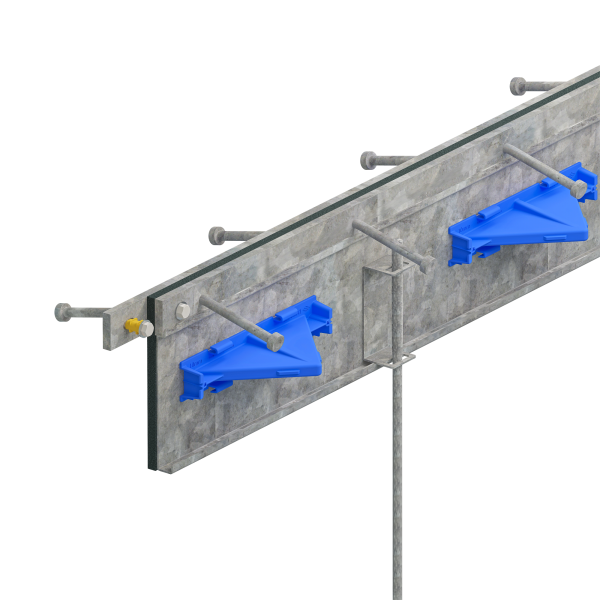

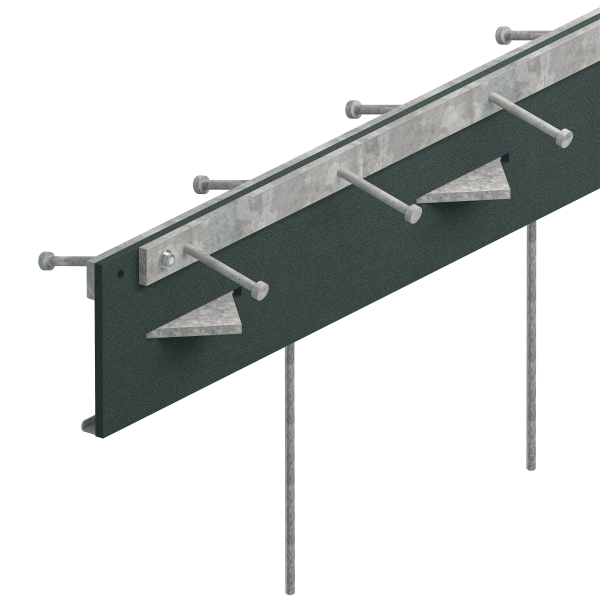

    Hyper ArmourMate™ Expanda™ is a premium armour edging solution designed to protect concrete slab edges from spalling while allowing for the thermal expansion of concrete in demanding industrial environments.

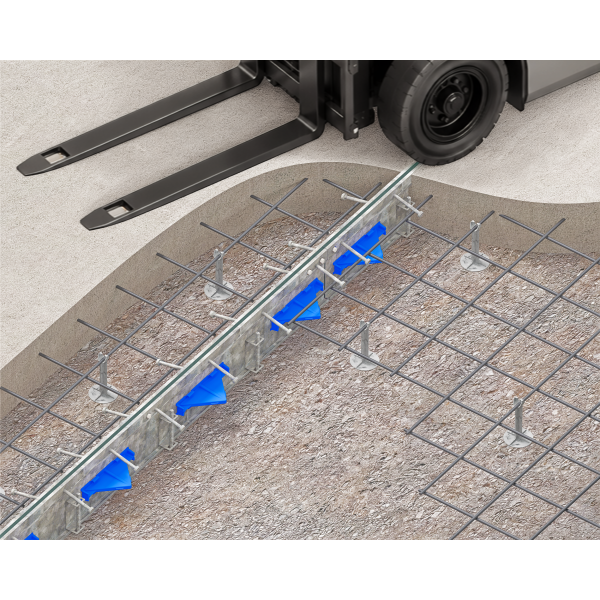

    Ideally suited to external industrial pavements, Hyper ArmourMate™ Expanda™ is designed for areas exposed to high load materials handling traffic, including semi automated and automated environments where small hard wheeled equipment operates daily.

    The system is galvanised and pre fitted with 10mm closed cell expansion foam to accommodate concrete movement. Now featuring Rip-A-Strip™ Capping, it also supports cleaner joint preparation, easier sealant installation and future joint repairs.

    Key Features
    • Protects slab edges from spalling in high‑traffic industrial environments.
    • Engineered for high load traffic, including small, hard‑wheeled materials‑handling equipment.
    • Ideal for external pavements where temperature variation must be managed.
    • Pre‑fitted with 10 mm closed‑cell foam to accommodate thermal expansion.
    • Includes Rip‑A‑Strip™ capping for clean, efficient sealant preparation.
    • Supports easier future joint repairs by maintaining a clean, straight joint line.
    Durability & Construction
    • Galvanised top rails, shear studs, and separation plates for long‑term durability.
    • Galvanised Diamond™ Dowel AirEx™ provides reliable load transfer across the joint.
    • Patented Control Barrel improves alignment and movement control.
    • Control Barrel maintains rail spacing during assembly, transport, and installation.
    Installation Advantages
    • Twist‑N‑Lock Stake Bracket system enables simple, secure installation and levelling.
    • Supplied in 3000 mm standard lengths for practical onsite handling.
    • 60 mm overlapping rail connection allows quick, accurate joining of lengths.
    File Type File Description
    Danley Product Catalogue ANZ Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.

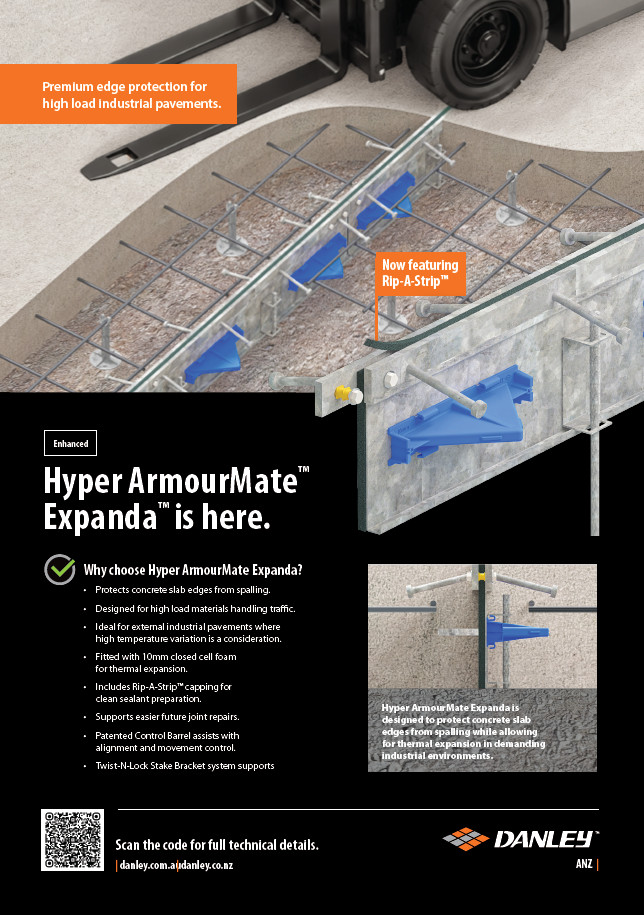

    Danley™ Hyper ArmourMate Expanda™ A4 Flyer Brochures & FlyersDanley™ Hyper ArmourMate Expanda™ A4 Flyer
    Danley™ Hyper ArmourMate Expanda™ TDS Product Data SheetsHyper ArmourMate FJS with 10mm Expansion Foam.
    File Type File Description

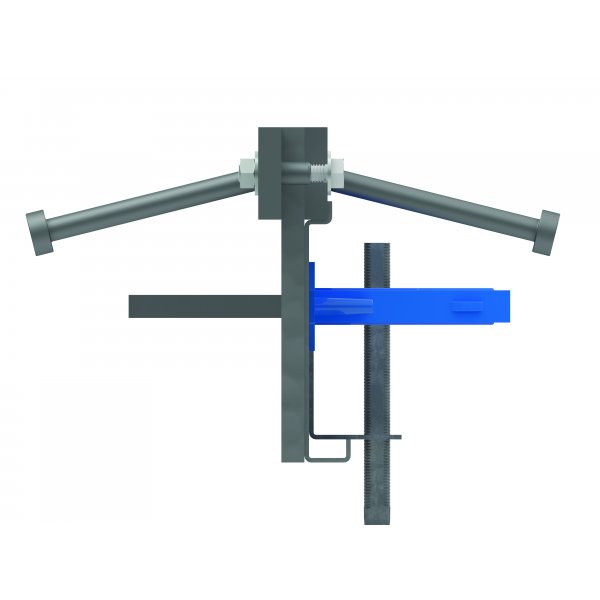

    DAN-DWG-046 - Hyper ArmourMate™ Expanda™ Sectional Views (FJS) Specification DrawingsDAN-DWG-046 - Hyper ArmourMate™ Expanda™ Sectional Views (FJS)
    DAN-DWG-046 - Hyper ArmourMate™ Expanda™ Sectional Views (FJS) AutoCAD. DWG filesDAN-DWG-046 - Hyper ArmourMate™ Expanda™ Sectional Views (FJS)
    DAN-DWG-047 - Hyper ArmourMate™ Expanda™ Connections Specification DrawingsDAN-DWG-047 - Hyper ArmourMate™ Expanda™ Connections
    DAN-DWG-047 - Hyper ArmourMate™ Expanda™ Connections AutoCAD. DWG filesDAN-DWG-047 - Hyper ArmourMate™ Expanda™ Connections

    Hyper ArmourMate™ Expanda™:

    Product Codes Rail Dims
    H x W (mm)    		 Length
    (mm)    		 Diamond™ Dowel
    (10mm or 20mm)    		 Dowel Centres
    (mm)    		 FJS Height
    (mm)    		 Slab Depth
    (mm)    		 Finish
    AMHY145FJSG-EF 40 x 10 3000 10 450 145 150-165 Galvanised
    AMHY165FJSG-EF 40 x 10 3000 10 450 165 170-185 Galvanised
    AMHY190FJSG-EF 40 x 10 3000 10 450 190 195-220 Galvanised
    AMHY245FJSG-EF 40 x 10 3000 20 450 245 250-300 Galvanised
