PD3™ Dowel Cradle with RynoBar™

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads
    • Videos


    The patented PD3™ design features a tapered and sleeveless plate dowel that provides the world’s best performance in limiting joint deflection to provide superior joint stability.

    The PD3™ Dowel Cradle provides the highest deflection control tolerance in line with ACI Standards recommendations to limit joint spalling, facilitates load transfer and provides the lowest risk of restraint that ensures the best serviceability outcome for the slab design. The use of the PD3™ system extends the life-cycle of the floor to provide the highest level of floor efficiency for tenants and the highest return on investment for the asset owner.

    PD3™ Dowel Cradles are designed to provide a total contraction joint system solution by incorporating two systems in the one solution. The tapered PD3™ plate dowels allow for lateral movement eliminating the need for a plastic dowel sleeve. The wire cage (cradle) acts as a chair and spacer to ensure the dowels are aligned and maintained at the correct height and spacing during the pouring of the slab.

    The elimination of the plastic sleeve from the dowel ensures direct concrete to steel contact , providing the best possible control of load deflection by eliminating the crush factor of the plastic, and in turn, tighter control tolerance than other sleeved plate dowel systems.



    PD3™ Dowel Cradle - Now with RynoBar™

    The RynoBar™ is a patented plastic Travel Bar, or sacrificial retention system pre-fitted to all Danley™ PD3™ Plate Dowel Cradles. Traditionally, a series of deformed steel bars are tack-welded to keep cradles intact whilst in transit to site.  Leading engineers and contractors suspect that un-cut steel travel bars are the significant factor in flooring failure resulting from restraint (parallel cracking).



    The RynoBar™ is designed to perform 2 pivotal tasks:

    (1) As a travel bar, the RynoBar™ is tough when it needs to be - ensuring that PD3™ cradles are intact during transit and installation on site.

    (2) The RynoBar™ features an innovate rib-design that yields at <1kN in early concrete shrinkage, which do not need to be cut before the placement of concrete. RynoBar™ saves time and effort on site.



    Features:

    • The PD3™ Dowel Cradle features a plate dowel with bond breaker allowing concrete to steel contact.
    • The PD3™ Dowel Cradle utilises a tapered plate dowel that allows lateral movement without the use of a plastic sleeve.
    • The wire cradle construction ensures the accurate placement and alignment of the plate dowels at the correct centres and height within the slab.
    • Available in 6mm, 10mm and 20mm plate dowel thicknesses. Cradles are supplied in 3 metre standard lengths.
    • PD3™ 20mm is available on a made-to-order basis.



    Advantages:

    • No plastic sleeves required.
    • Direct steel contact allows superior load deflection control.
    • Engineered to meet Super Flat Floor (SFF) requirements, ACI 360-R10.
    • The use of the PD3™ Dowel Cradle creates a lateral and longitudinal movement void.
    • Reduces the risk of restraint.
    • Provides fast and accurate horizontal and vertical placement.
    • Superior control of vertical deflection increases the life span of gap sealants both internally and externally.
    • Prolonging the life of gap sealants also protects against moisture and debris migrating into joint cavity.
    • Wider sweet spot for sawcut provides greater tolerance for contractor accuracy.


    The Benefits & Advantages of RynoBar™

    • Improved Safety: Eliminates the sharp edges on traditional steel travel bars.
    • Faster Set up & Installation: Saves time and money! Say goodbye to cutting traditional steel travel bars.
    • Quality Assurance: RynoBar™ is engineered to accurately yield at the saw cut joint.
    • Durability: Designed tough when it needs to be! RynoBar™ will get your PD3™ cradles on site in one piece.
    • Quality Design: The RynoBar™ is proudly designed and manufactured in Australia!
    File Type File Description
    PD3 Plate Dowel Cradle with RynoBar Flyer Brochures & FlyersDanley PD3 Plate Dowel Cradle with RynoBar A4 Promotional Flyer
    Danley PD3 Plate Dowel Cradle with RynoBar Product Guide ANZ Product GuidesProduct information and technical data for the Danley_PD3 Plate Dowel Cradle with RynoBar.
    Danley Product Catalogue ANZ Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.
    File Type File Description

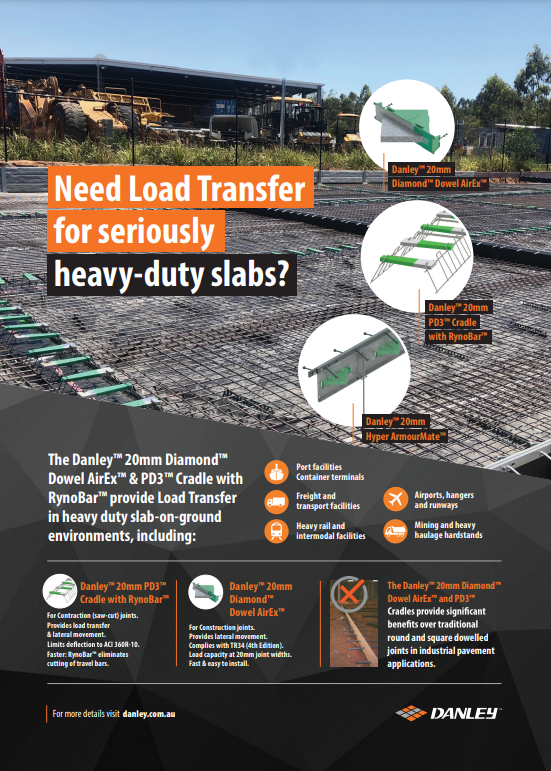

    Danley Heavy Duty Load Transfer Flyer Brochures & FlyersThe Danley™ 20mm Diamond™ Dowel AireX & PD3™ Cradle with RynoBar™ provide Load Transfer in heavy duty slab-on-ground environments.
    PD3 Plate Dowel Cradle with RynoBar TDS Product Data SheetsTechnical Data Sheet: Danley PD3 Plate Dowel Cradle with RynoBar Travel Bar System
    Danley PD3 20mm TDS Product Data SheetsEngineering Technical Data Sheet for the PD3 20mm Plate Dowel Cradle.
    RCS_Civil Market Offer Product Guide Product GuidesRCS_Civil Market Offer Product Guide
    DAN-DWG-004 - PD3™ Dowel Cradle Sectional Views (dwg) AutoCAD. DWG filesPD3™ Dowel Cradle Sectional Views (dwg)
    DAN-DWG-004 - PD3™ Dowel Cradle Sectional Views Specification DrawingsPD3™ Dowel Cradle Sectional Views (pdf)
    DAN-DWG-005 - PD3™ Dowel Cradle Intersections (dwg) AutoCAD. DWG filesPD3™ Dowel Cradle Intersections (dwg)
    DAN-DWG-005 - PD3™ Dowel Cradle Intersections Specification DrawingsPD3™ Dowel Cradle Intersections (pdf)
    DAN-DWG-006 - PD3™ Dowel Cradle Slab Types (dwg) AutoCAD. DWG filesPD3™ Dowel Cradle Slab Types (dwg)
    DAN-DWG-006 - PD3™ Dowel Cradle Slab Types Specification DrawingsPD3™ Dowel Cradle Slab Types (pdf)
    Danley™ PD3™ Plate Dowel Cradles with RynoBar™

    The PD3™ Tapered and Sleeveless Plate Dowel Cradles which provides the world’s best performance in limiting joint deflection under load, is now available with RynoBar™. The patented PD3™ design features a tapered and sleeveless plate dowel that provides the world’s best performance in limiting joint deflection to provide superior joint stability.

    6mm - PD3™ Plate Dowel Cradle with RynoBar™

    6mm - PD3™ Plate Dowel Cradle with RynoBar™:

    PartDescriptionDowel size
    (mm)
    Dowel spacing
    (mm)
    Slab depth range
    (mm)
    Material
    PD306450125BLKPD3 Cradle 06mm @ 450 centres to suit 120-135mm Slab - Black Dowels6450120-135Black
    PD306450125GPD3 Cradle 06mm @ 450 centres to suit 120-135mm Slab - Galvanised Dowels6450120-135Galvanised
    PD306450150BPD3 Cradle 06mm @ 450 centres to suit 140-160mm Slab - Black Dowels6450140-160Black
    PD306450150GPD3 Cradle 06mm @ 450 centres to suit 140-160mm Slab - Galvanised Dowels6450140-160Galvanised
    PD306450175BPD3 Cradle 06mm @ 450 centres to suit 165-185mm Slab - Black Dowels6450165-185Black
    PD306450175GPD3 Cradle 06mm @ 450 centres to suit 165-185mm Slab - Galvanised Dowels6450165-185Galvanised
    PD306450200BPD3 Cradle 06mm @ 450 centres to suit 190-210mm Slab - Black Dowels6450190-210Black
    PD306450200GPD3 Cradle 06mm @ 450 centres to suit 190-210mm Slab - Galvanised Dowels6450190-210Galvanised
    10mm - PD3™ Plate Dowel Cradle with RynoBar™

    10mm - PD3™ Plate Dowel Cradle with RynoBar™:

    PartDescriptionDowel size
    (mm)
    Dowel spacing
    (mm)
    Slab depth range
    (mm)
    Material
    PD310450150BPD3 Cradle 10mm @ 450 centres to suit 140-160mm Slab - Black Dowels10450140-160Black
    PD310450150GPD3 Cradle 10mm @ 450 centres to suit 140-160mm Slab - Galvanised Dowels10450140-160Galvanised
    PD310450175BPD3 Cradle 10mm @ 450 centres to suit 165-185mm Slab - Black Dowels10450165-185Black
    PD310450175GPD3 Cradle 10mm @ 450 centres to suit 165-185mm Slab - Galvanised Dowels10450165-185Galvanised
    PD310450200BPD3 Cradle 10mm @ 450 centres to suit 190-210mm Slab - Black Dowels10450190-210Black
    PD310450200GPD3 Cradle 10mm @ 450 centres to suit 190-210mm Slab - Galvanised Dowels10450190-210Galvanised
    20mm - PD3™ Plate Dowel Cradle with RynoBar™

    20mm - PD3™ Plate Dowel Cradle with RynoBar™:

    PartDescriptionDowel size
    (mm)
    Dowel spacing
    (mm)
    Slab depth range
    (mm)
    Material
    PD320300250GPD3 Cradle 20mm @ 300mm centres to suit 225-275mm slab - Galvanised (1.2mtr = 4 dowels)20300225-275Galvanised
    PD320300300GPD3 Cradle 20mm @ 300mm centres to suit 280-330mm slab - Galvanised (1.2mtr = 4 dowels)20300280-330Galvanised
    PD320400360GPD3 Cradle 20mm @ 400mm centres to suit 340-390mm slab - Galvanised (1.6mtr = 4 dowels)20400340-390Galvanised
    PD320400425GPD3 Cradle 20mm @ 400mm centres to suit 400-450mm slab - Galvanised (1.6mtr = 4 dowels)20400400-450Galvanised
