WavePlate™ ArmourMate™

Introducing a step forward in joint system technology-enhancing performance without changing what you already trust.

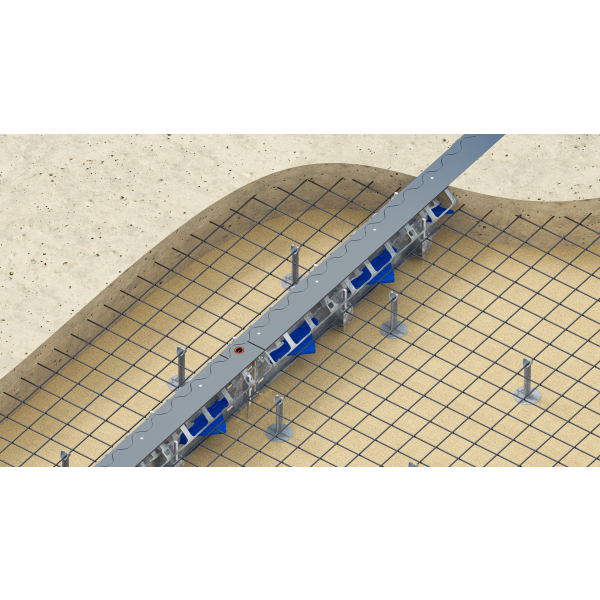

Danley™ WavePlate™ ArmourMate™ utilises disruptive joint technology to protect concrete edges and continuously supports passing material handling equipment (MHE), providing for a smooth, low impact transition across joints up to 20mm wide.

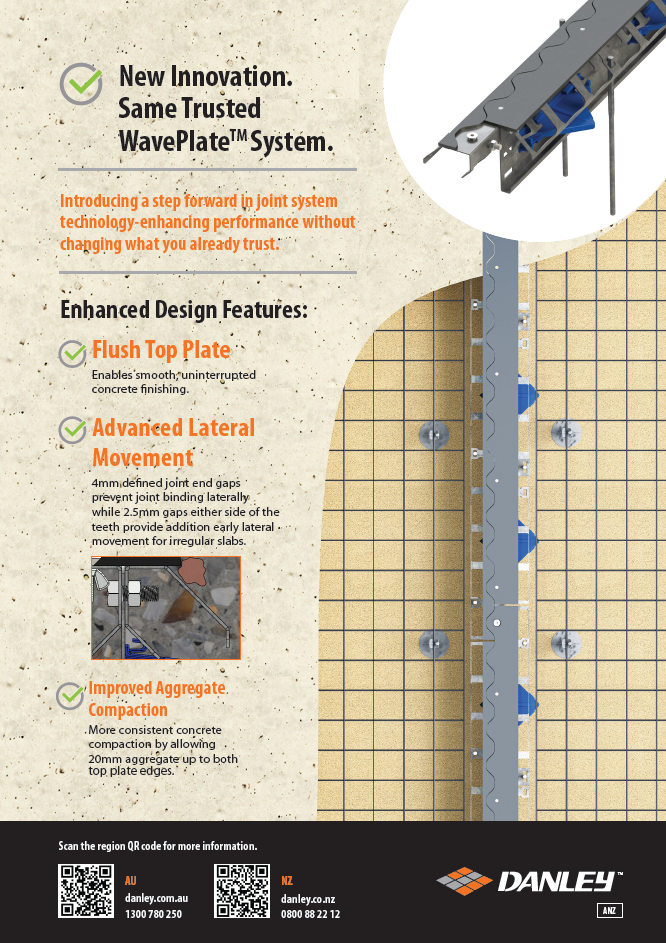

New WavePlate™ Enhanced Design Features:

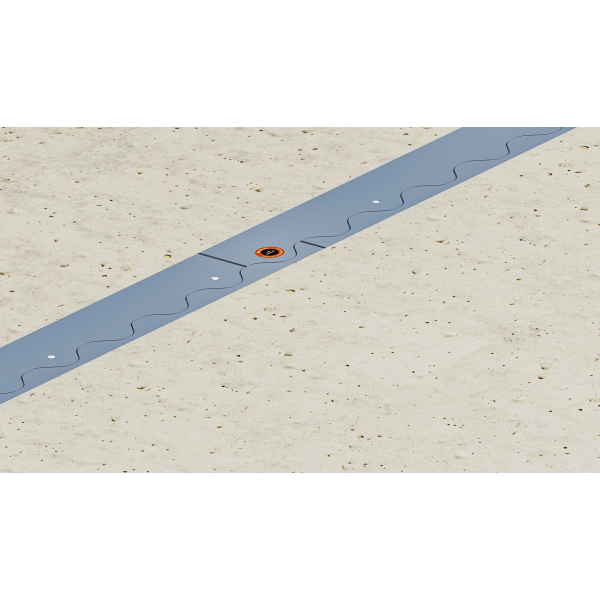

Flush Top Plate: Enables smooth, uninterrupted concrete finishing.
Advanced Lateral Movement: 4mm defined joint end gaps prevent joint binding laterally while 2.5mm gaps either side of the teeth provide addition early lateral movement for irregular slabs.

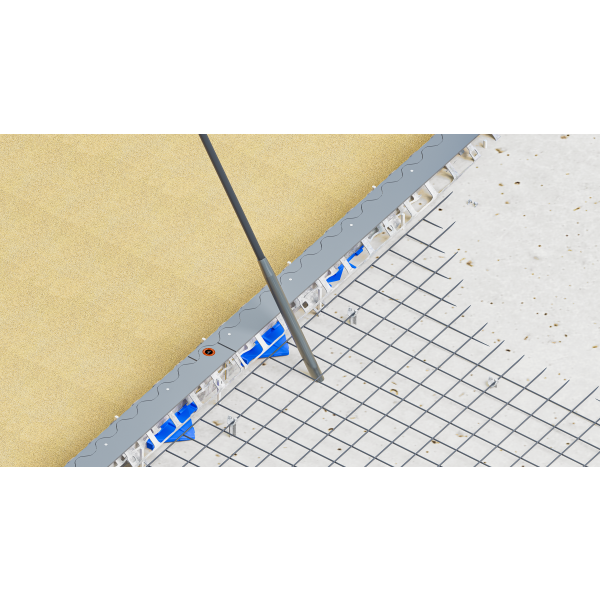

Improved Aggregate Compaction: More consistent concrete compaction by allowing 20mm aggregate up to both top plate edges.

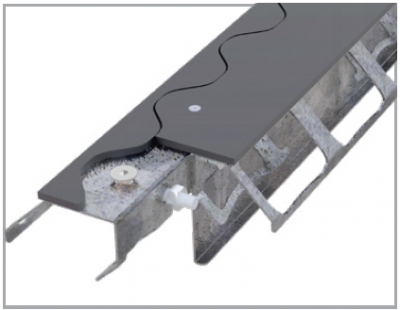

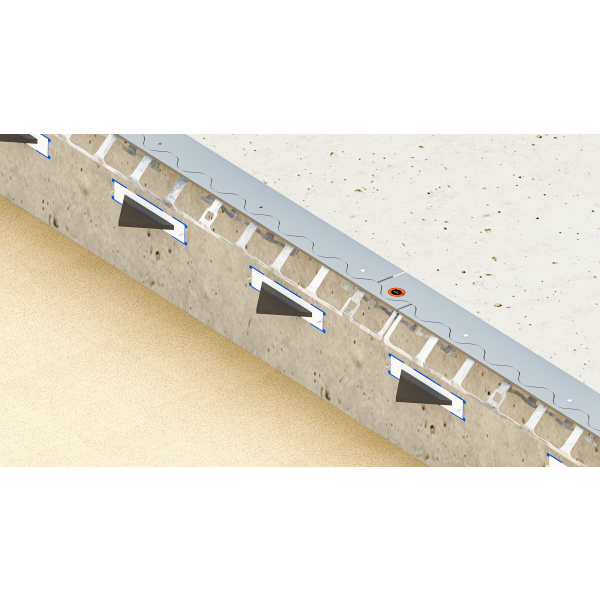

The offset design of the WavePlate ArmourMate improves joint performance and serviceability by preventing debris and other contaminants from filling the joint – aiding thermal expansion and protecting the load transfer mechanism - without the need of a filler or sealant. The continuous studding profile provides consistent, even anchorage in the concrete.

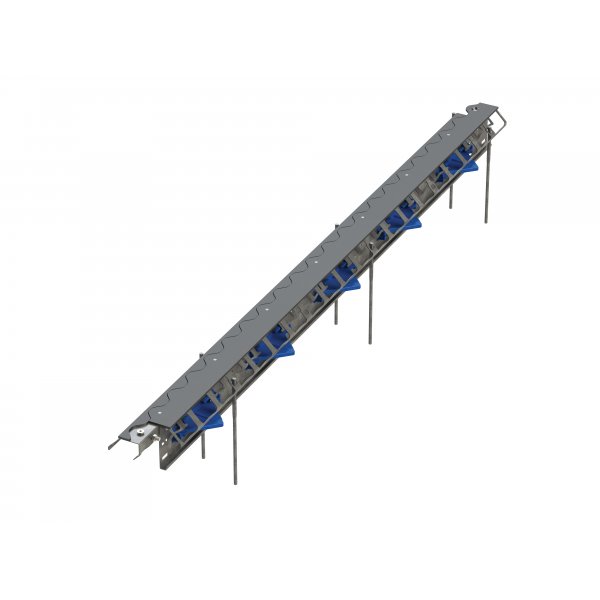

The full joint WavePlate ArmourMate is supplied in standard 2.1 metre lengths and is available in a range of profile heights for common slab thicknesses in Black or Galvanised finish. WavePlate is also available in a Top Rail Assembly configuration. Intersection Nodes are available in both Black and Galvanised.

Features:

• Disruptive Joint Technology fully supports MHE to 20mm joint width gap.
• Supplied in 2.1 metre lengths.
• Available in 145mm, 165mm, 190mm and 245mm profile heights.
• Supplied with Galvanised sacrificial separation plate. Replaces traditional timber formboards.

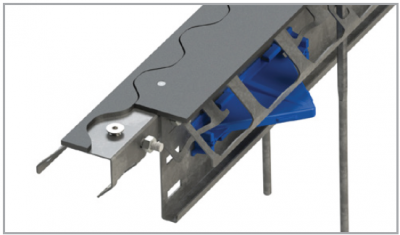

• Danley™ Diamond™ Dowels provide load transfer to the requirements of TR34 (4th Edition).

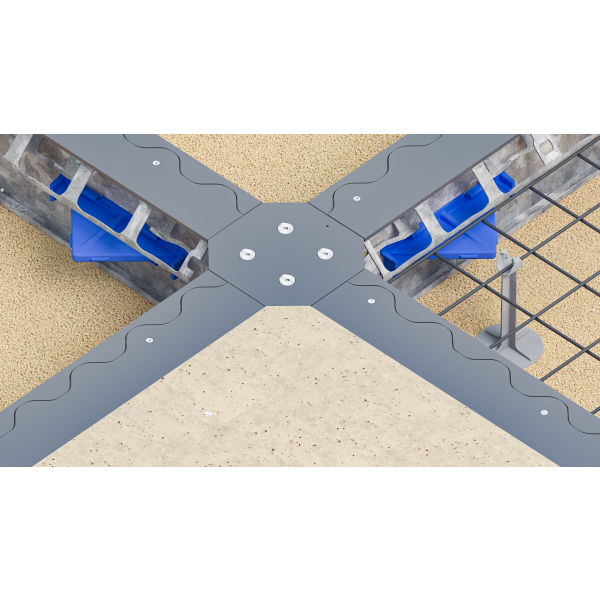

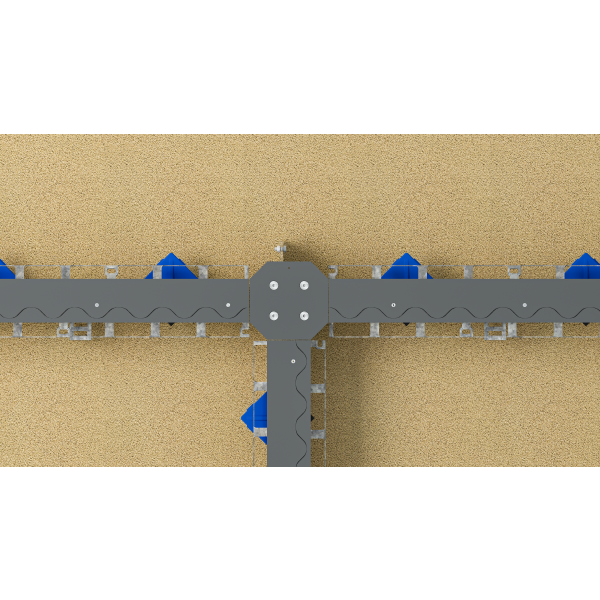

• WavePlate Node Intersections are available.
• Flush top plate design enables smooth and efficient concrete finishing.
• 4mm offset ensures Advanced lateral movement capabilities. precise and consistent joint spacing.

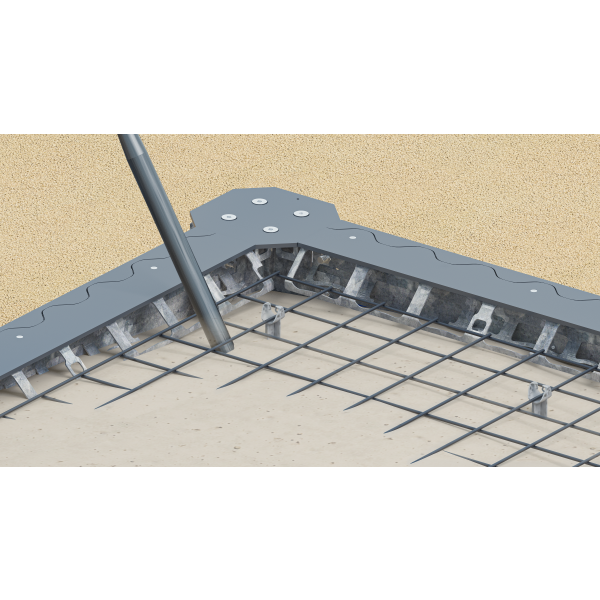

• Complete concrete aggregate consolidation and compaction, minimises concrete spalling, enhancing durability.

Advantages:


• No Gaps! No Bumps! WavePlate™ provides a smooth, low-impact and quiet transition over the joint, ideal for LGV & automated MHE.
• Danley™ WavePlate™ ArmourMate™ is ideally suited for a range of industrial flooring designs including E-commerce Distribution Centres, Big Box Retail, Food Warehouses and Cold-Storage Facilities.

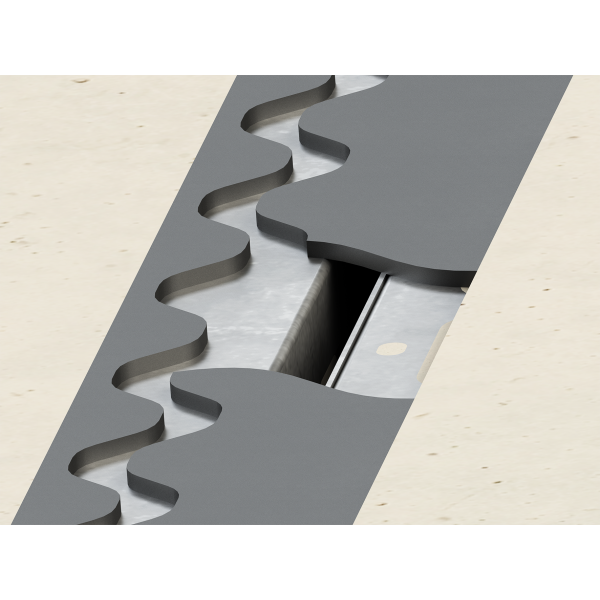

• Fully encapsulated joint system prevents debris and other contaminants from filling the joint, as well as mitigating the ingress of pests including vermin and rodents.
• Reduces concrete spalling and damage at the joints.
• Reduces the high maintenance, service & repair costs of MHE attributed to the impacts caused by conventional rail systems.
• Reduces floor maintenance and downtime costs over the life-cycle of the facility.
• WavePlate™ is tested and validated to a 25+ Year Design Life.

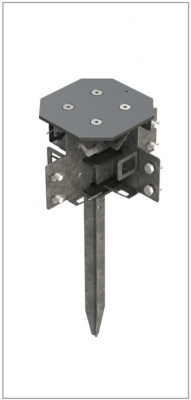

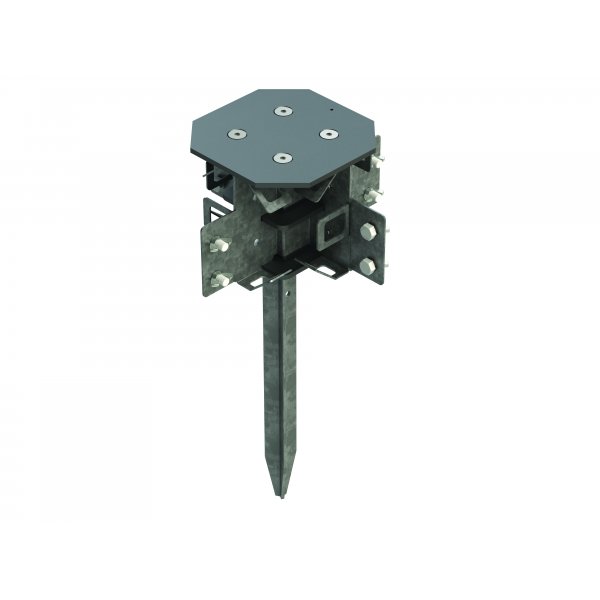

• Innovative Intersection Node is compact, lightweight and safe to carry around site.

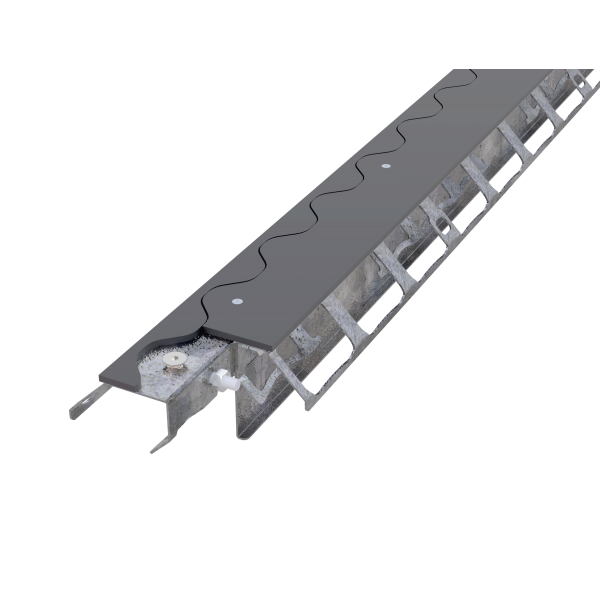

• Top Rail Assembly is available for slab designs greater than 300mm in depth.
